Name: 120° Angle Grab Bar
SKU: G125SK24X24F9-1PK

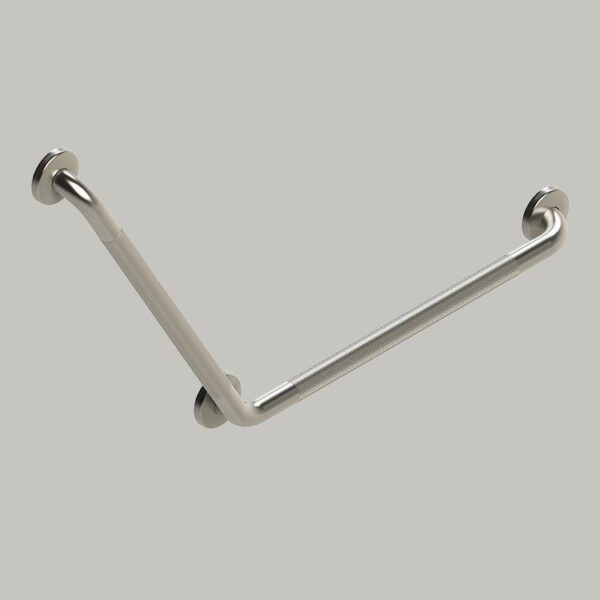

120° stainless steel with knurling grab bar on a white background.

120° grab bar on a tile wall in a bath/shower combo.

Close-up on the flange cover and bar with visible knurling

Commercial grade quality - for facility or home. Provides strength and security for shower and bathroom safety. Explore Full Details

N/A

Regular Price

Clear

45 Days Satisfaction Guarantee

DETAILS

DESCRIPTION & FEATURES

Provides strength and security.

Commercial grade quality – for facility or home! The 120 Angled Grab Bar allows moving in the shower and bathroom with greater safety. HealthCrafts L shaped grab bar features our Easy Mount 9 hole flanges to make it easier to install securely and solidly. Made from #304 stainless steel, this safety rail will not rust like zinc or chrome plated grab bars.

Product Features

Guarantee best fit possible.

With nine-hole flanges rather than the three-hole standard used in most grab bars, the Easy Mount from HealthCraft offers greater versatility in installation and safety than other options

Illustration of the Easy Mount Grab Bar showing how the 9 hole flange helps make installation easier

We have you covered.

All 120 Angle Grab Bars have flange covers to hide the mounting screws – a simple and modern finish.

Illustration of the Easy Mount Grab Bar showing how the flange cover hides the mounting screws

PRODUCT VIDEOS

Instructions Technical Data Sheet

SPECIFICATIONS

Tech Specs

Specifications subject to change without notice. Product not intended for outdoor use.

Material

Stainless steel

Finish

Knurled

Weight Capacity

500lbs / 227kg

Rail Diameter

1.25" / 32mm

Wall Clearance

1.50" / 38mm

Rail Length

24x24" / 610x610mm (120 degree angle)

Warranty

Limited Lifetime Warranty

Part Numbers

GB-24x24-SK-1PK

FREQUENTLY ASKED QUESTIONS (FAQ’s)

Can’t Find Your Question Below? Just Chat Us!

While other manufacturers actively promote the use of expansion fasteners behind drywall, we feel that best practice should always be to mount grab bars securely into structural studs and if necessary, provide the necessary blocking to achieve proper structural support. Our reason for this recommendation is that in real-life scenarios, there is no way to establish, the quality, age, condition and capacity for the drywall to support the fasteners. With that said, assuming you understand the risks and additional blocking is not acceptable and that the installer believes the drywall to be structurally sound using snap toggles can be an alternative, however using snap toggles reduces the weight capacity of the product.

If the 120 Angle Grab Bar isn't installed, carefully tap the the bottom of flange cover on a flat surface or with a rubber mallet so the finish isn't damaged. If the grab bar is installed, a flat head screwdriver may used to carefully pry the flange cover off without damaging the finish.

While both are stainless steel, the appearance of the finish is differs because the stainless steel Easy Mount Grab bars are knurled. The Invisia Accent Bar is designed to match the Invisia accessories perfectly while providing the same function of a grab bar.

No, the Easy Mount Wall Anchor is not compatible with the 120° Angle Grab Bar. This grab bars require direct mounting into wall studs to ensure proper support and safety. The Easy Mount Wall Anchor is designed specifically for PLUS and EASY MOUNT grab bar models and may not provide the necessary stability or weight capacity for angled or L-shaped grab bars. For safe installation, follow the manufacturer's guidelines for each specific grab bar model.
